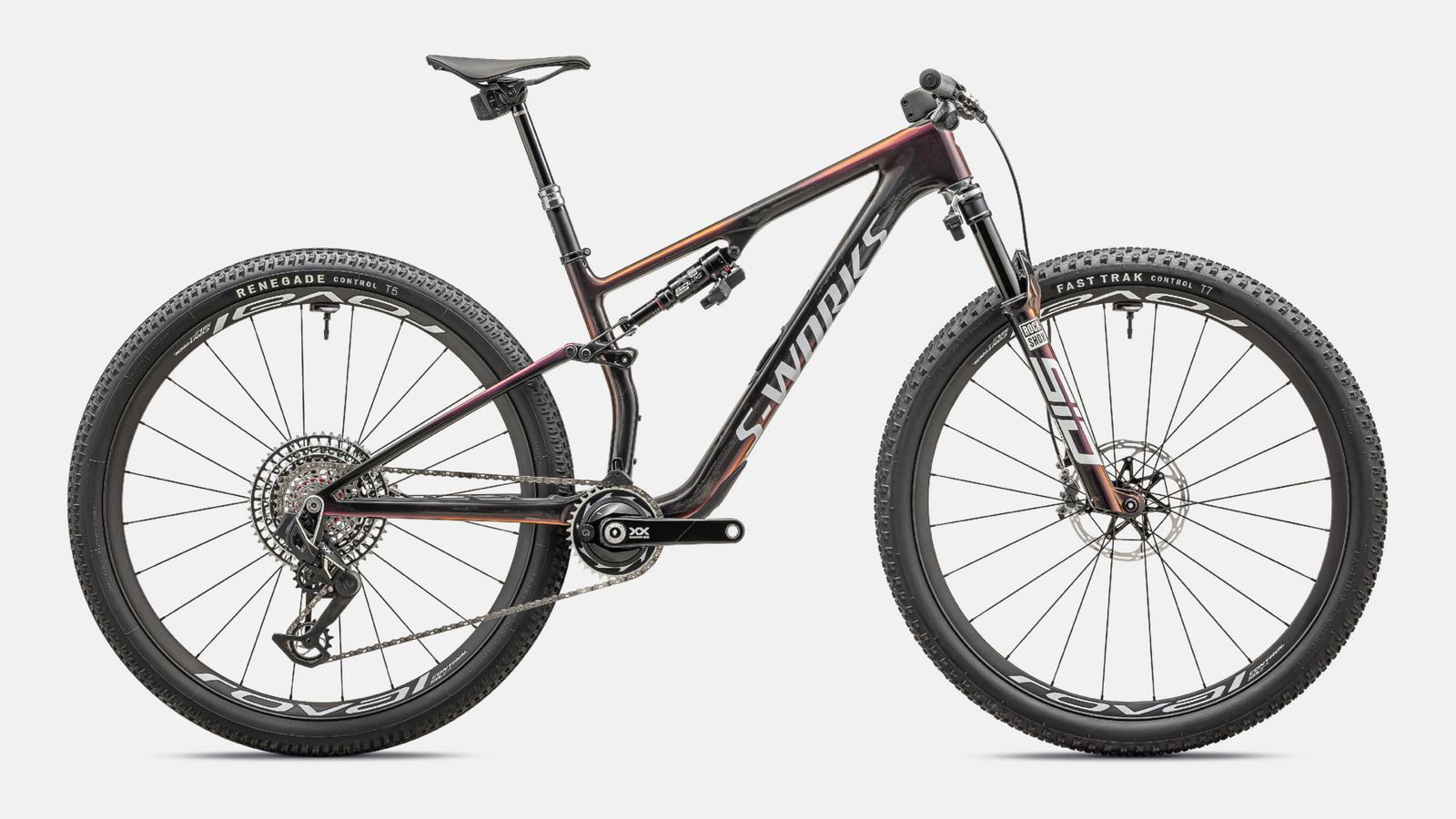

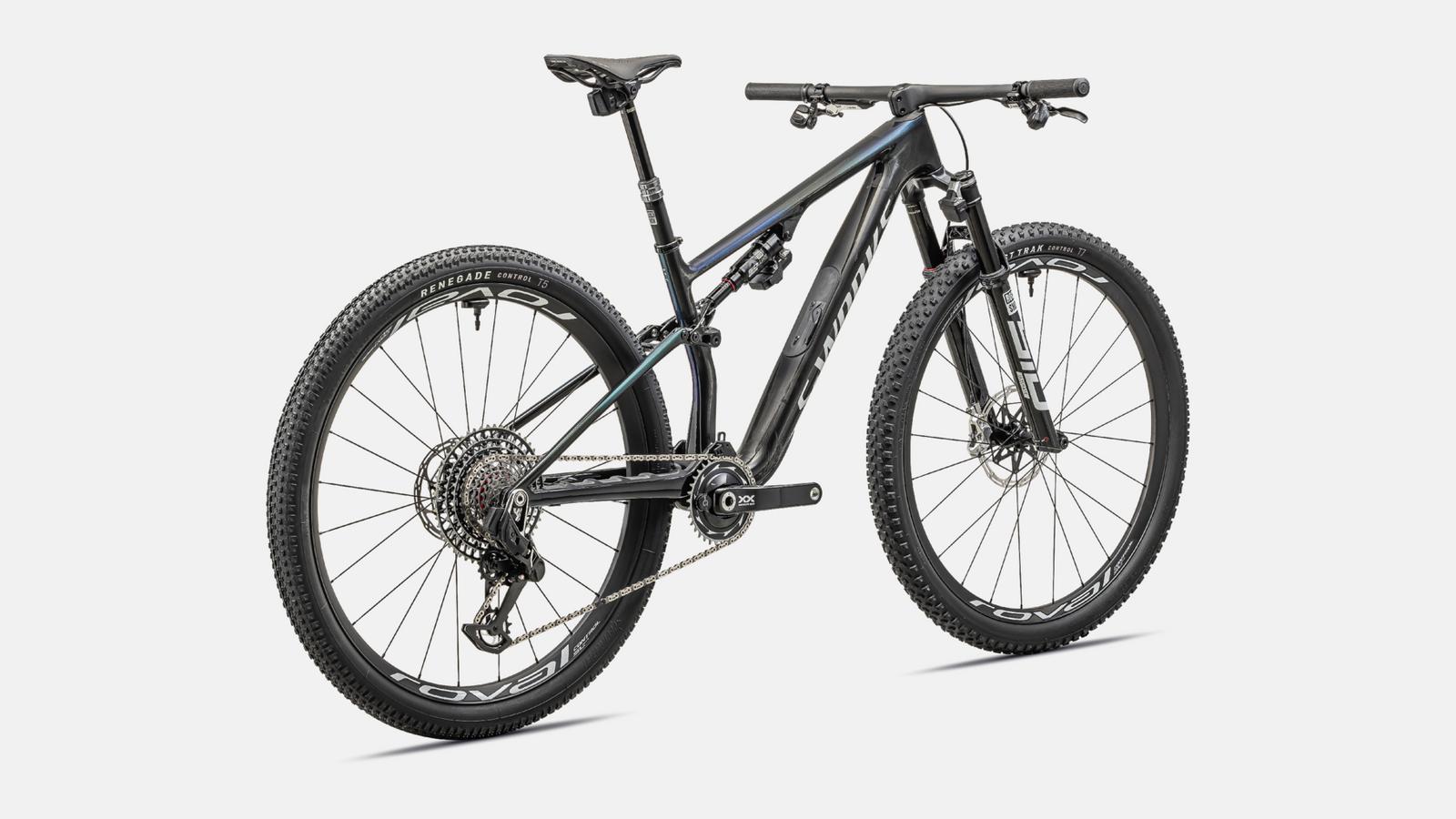

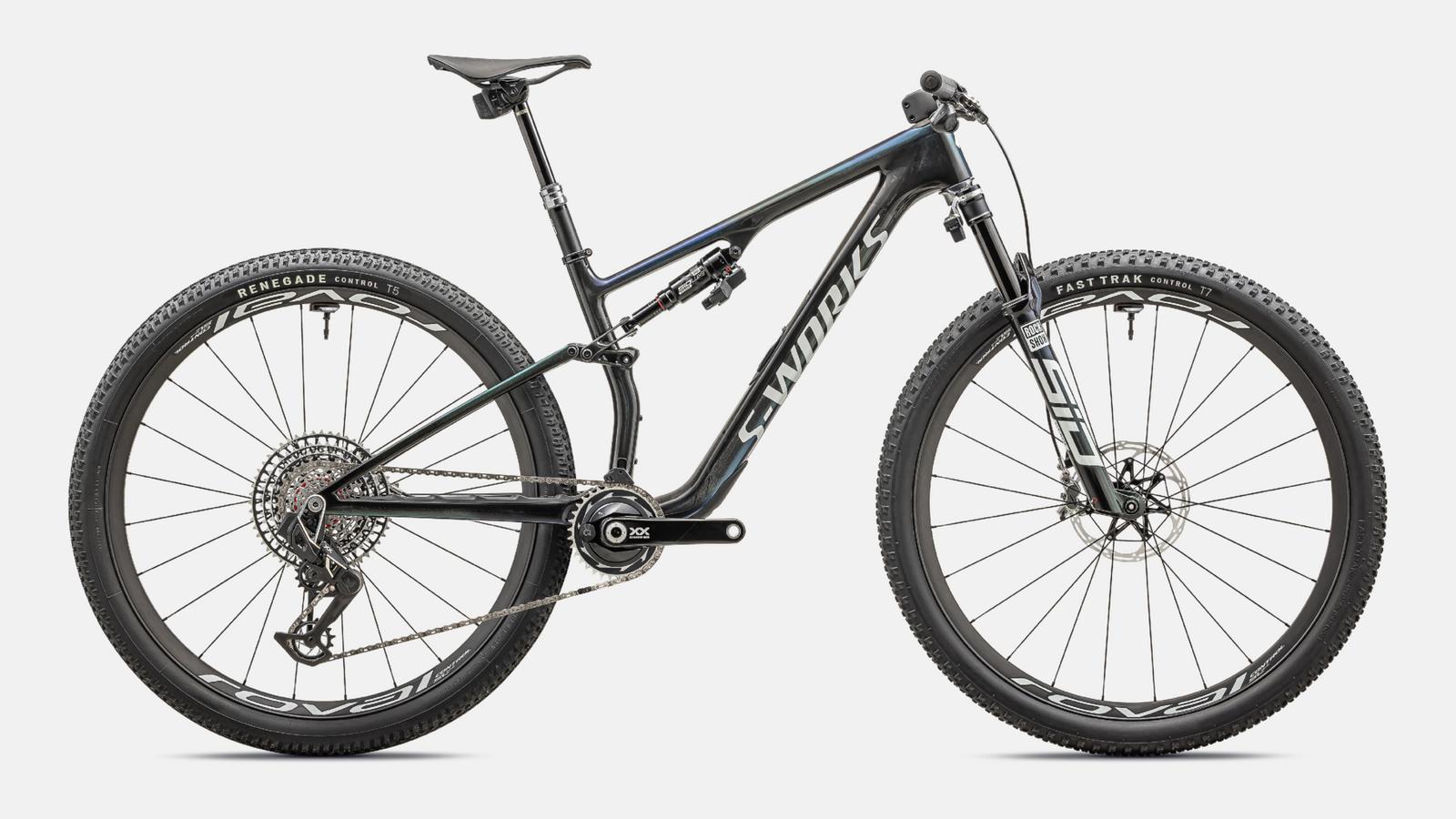

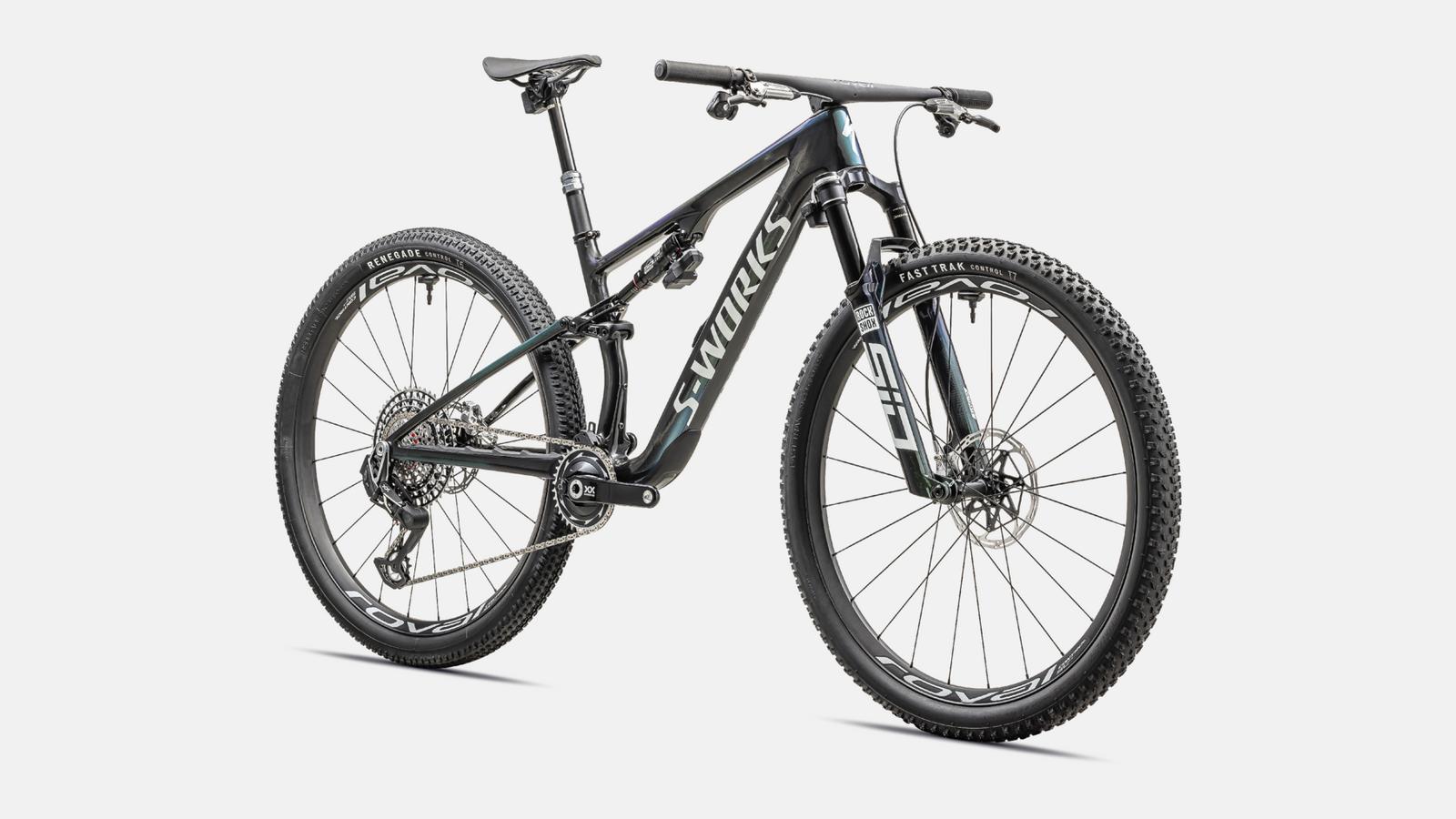

S-WORKS EPIC 8
Descripción
"The all-new Epic 8 evolves the formula of fastest through capability, efficiency, and lightweight integration. Modern XC tracks demand more and more capability by the day. Enter Epic 8. Its improved kinematics make it the most efficient pedaling bike we’ve ever tested, while custom valved (and tuned) shocks soak up every bump. It’s a wolf in wolf’s clothing.
If you’re an XC racer or prioritize all-out speed in your ride, the Epic 8 is the bike for you.
UNMATCHED CAPABILITY: The most capable 120mm bike on the planet. You’ll be blown away by how Epic 8’s progressive geometry delivers technical terrain capability alongside fast and efficient climbing and acceleration performance. The absurd lateral and torsional rigidity of the chassis translates to some seriously precision handling, too.
WHAT BUMP?: Compared to the previous generation, the new Epic 8 absorbs 12% more bump and vibration forces than the previous generation, leaving you less fatigued and more powerful over time so you can still push while they
Technical Specifications
Frameset
Frame
S-Works FACT 12m Carbon, Progressive XC Race Geometry, Rider-First Engineered™, SWAT downtube storage, threaded BB, 12x148mm UDH compatible rear dropout, internal cable routing, 120mm of travel, Optimized for wireless drivetrain and seatpost
SWAT
SWAT internal downtube storage
Seat Binder
Specialized Alloy 34.9, Titanium Bolt
Suspension
Fork

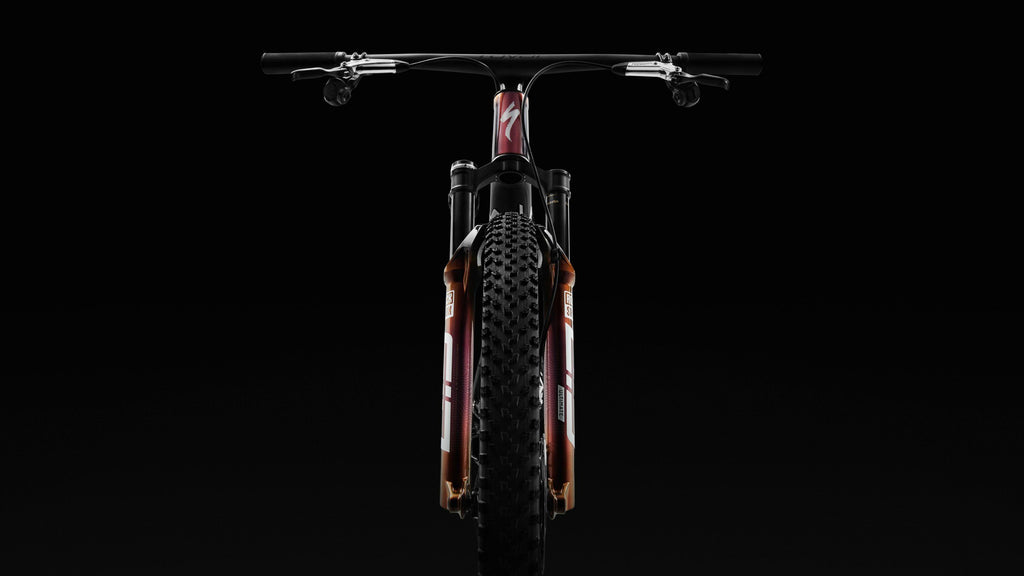

RockShox SID ULTIMATE Flight Attendant, Ride Dynamics developed 3 position, Debon Air, 15x110mm, 44mm offset, 120mm Travel

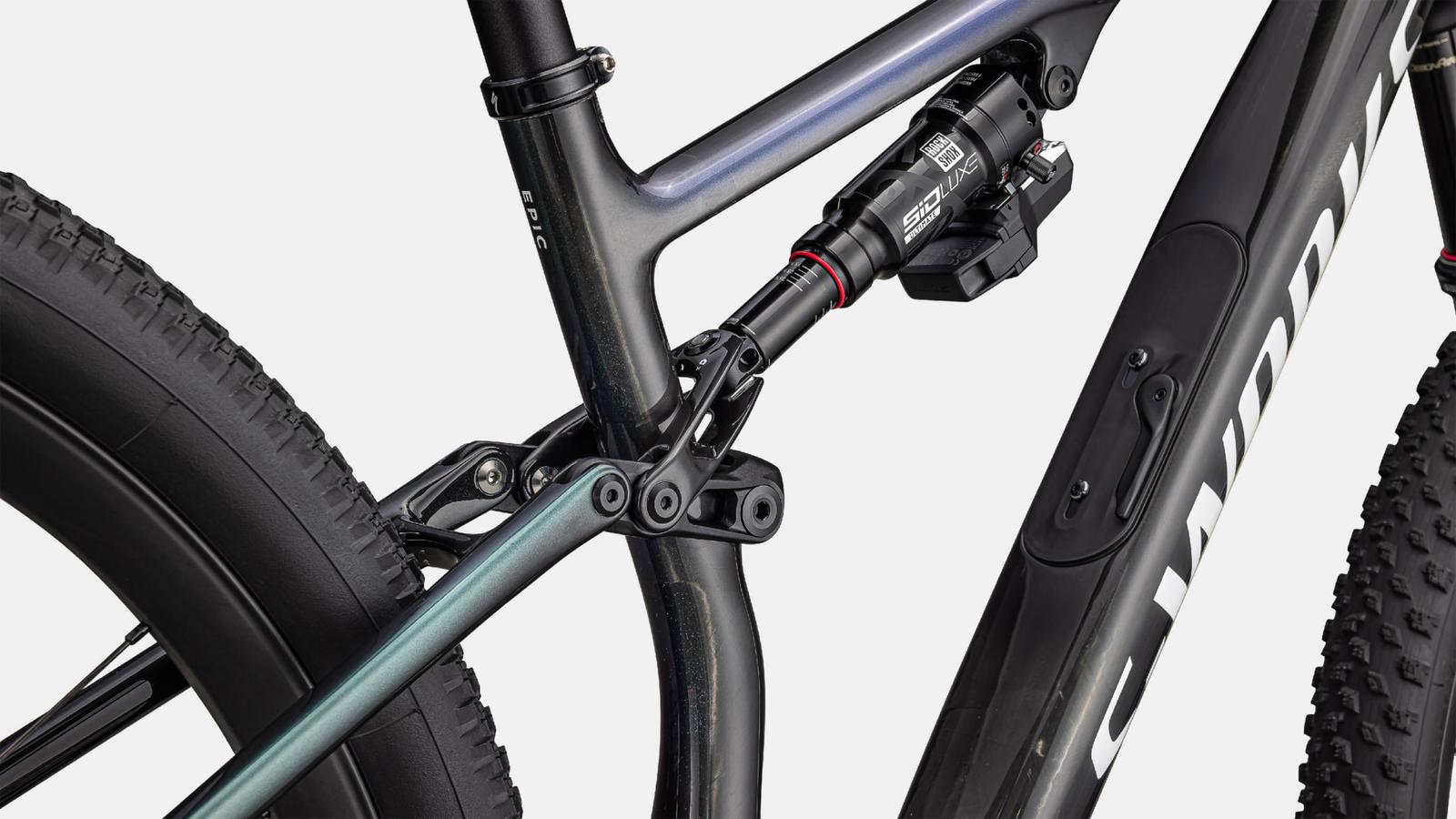

Rear Shock

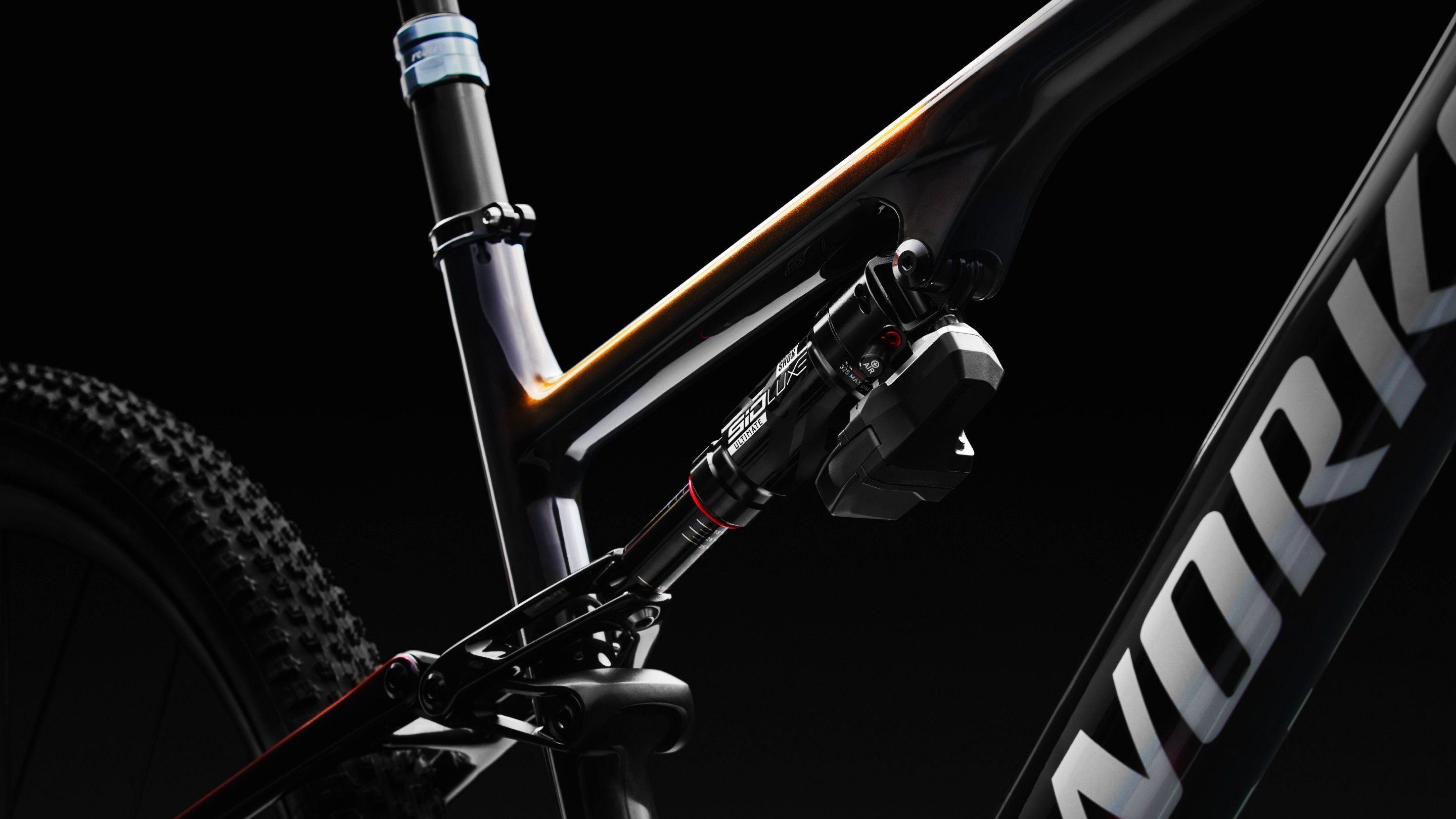

RockShox SIDLuxe ULTIMATE Flight Attendant, Ride Dynamics developed 3 position, Solo Air, 190x45mm
Cockpit
Saddle
Body Geometry S-Works Power, carbon fiber rails, carbon fiber base

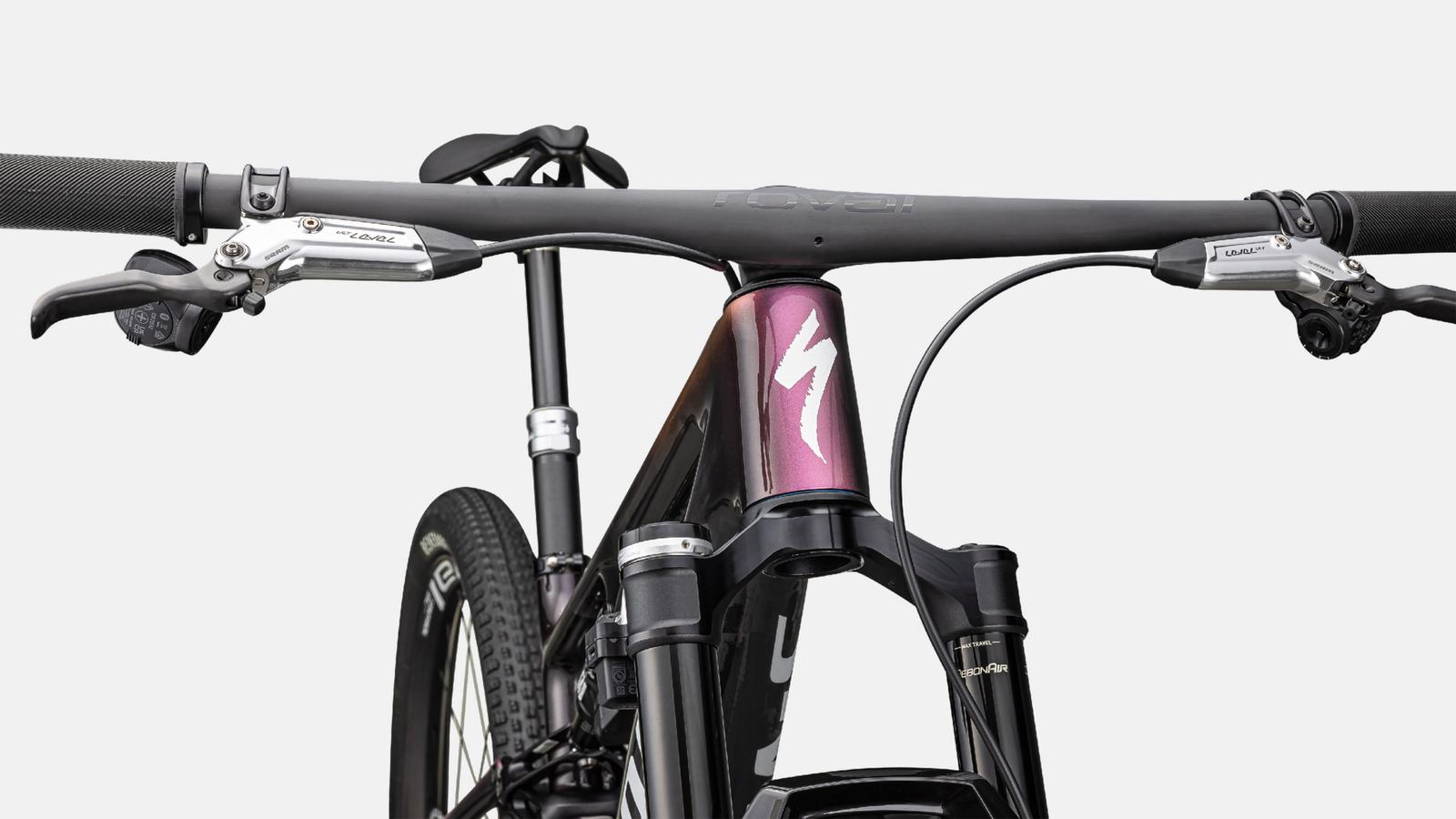

Handlebars
Roval Control SL Integrated cockpit, 60mm X- 12 degree integrated stem, 8-degree backsweep, 1 degree upsweep, 760mm wide
Grips
Specialized Trail Grips
SeatPost
RockShox Reverb AXS, 30.9mm, S/M: 125, L:150, XL: 170mm
Brakes
Rear Brake
SRAM Level Ultimate Stealth, 4-piston caliper, hydraulic disc, 160mm rotor
Front Brake
SRAM Level Ultimate Stealth, 4-piston caliper, hydraulic disc, 180mm rotor

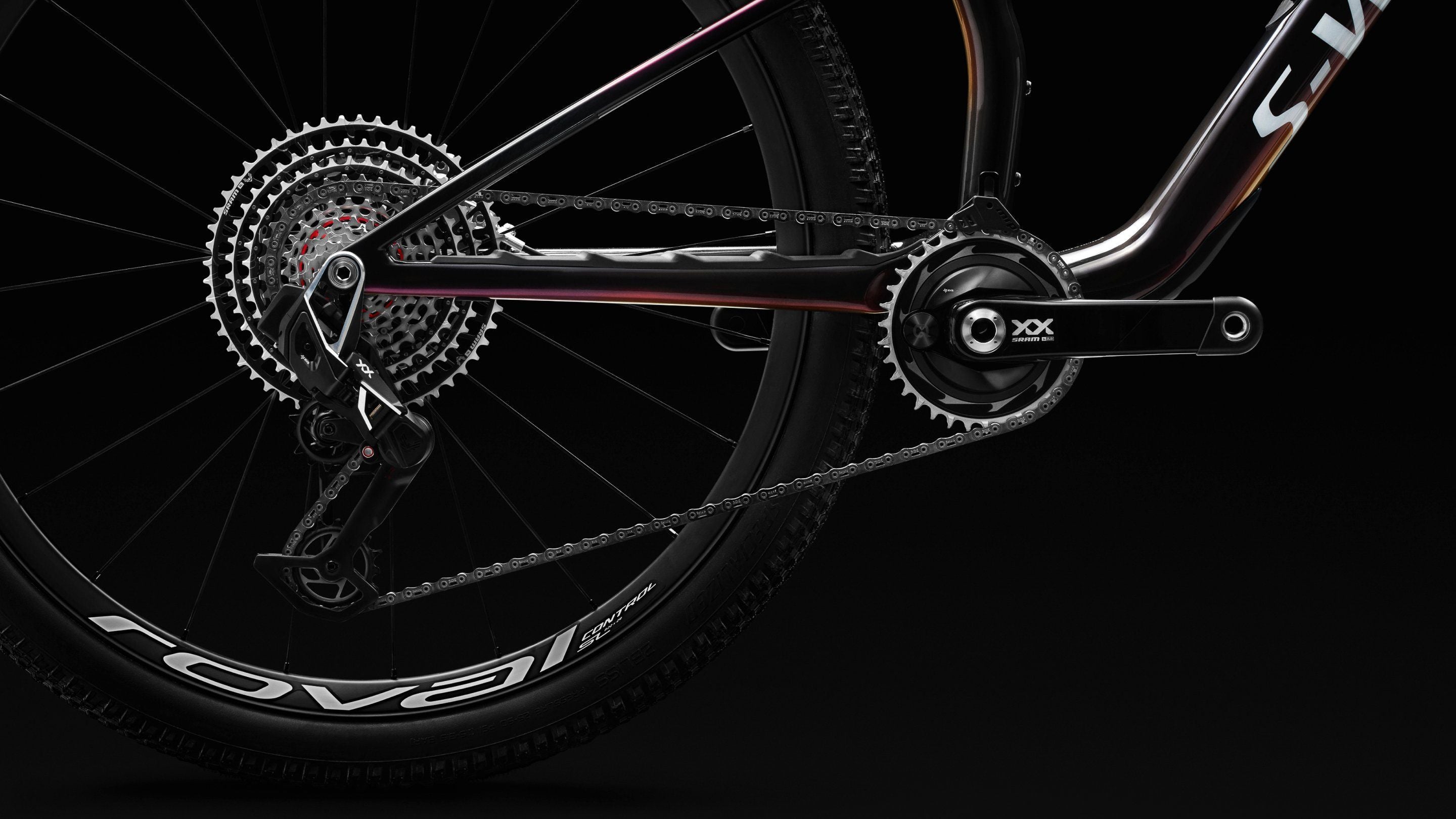

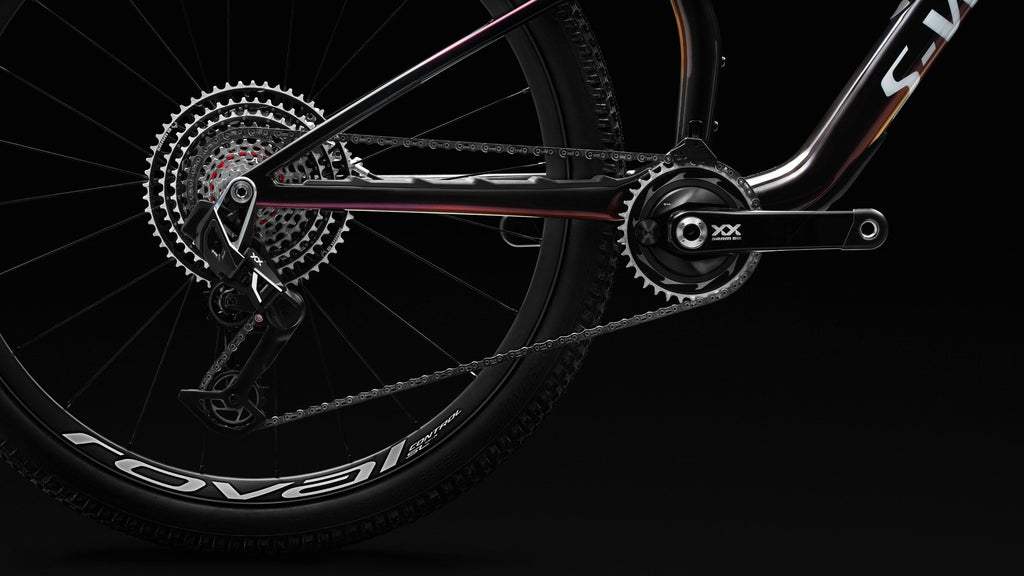

Drivetrain
Shift Levers
SRAM AXS POD Ultimate Controller
Cassette
SRAM XX Eagle SL 10-52t
Bottom Bracket
SRAM DUB, BSA 73mm, Threaded
Crankset
SRAM XX SL Eagle Power Meter Crankset, 170mm/175mm
Chain
SRAM XX SL Eagle
Rear Derailleur
SRAM XX SL Eagle AXS
Chainrings
Alloy 34T
Wheels & Tires
Rims
Roval Control SL, Carbon offset design, 29mm internal width, 4mm hook width, Tubeless ready, 24h
Front Hub
Roval Control SL, DT Swiss Internals, Ceramic Bearings, 6-bolt, 15mm thru-axle, 110mm spacing, Torque caps, 24h straight pull
Rear Hub
Roval Control SL, DT Swiss 180 Internals, DT Swiss Ratchet EXP, Ceramic bearings, 12mm thru-axle, 148mm spacing, 24h straight-pull
Front Tire
Specialized Fast Trak, Control Casing, T7 Compound, 29x2.35
Rear Tire
Specialized Renegade, Control Casing, T5 Compound, 29x2.35
Spokes
DT Swiss Aerolite T-head
Inner Tubes
Specialized Turbo Tube
Weight
Weight
10.24kg (22 lb, 9.2 oz)
Weight Size
MD
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| S | M | L | XL | |
|---|---|---|---|---|
| Crank Length | 170mm | 170mm | 175mm | 175mm |
| Handlebar Width | 760mm | 760mm | 760mm | 760mm |
| Stem Length | 60mm | 60mm | 60mm | 60mm |
| Saddle Width | 155mm | 143mm | 143mm | 143mm |
| Seatpost Length | 125mm | 125mm | 150mm | 170mm |
| Front Center | 716mm | 747mm | 778mm | 811mm |
| Seat Tube Length | 390mm | 410mm | 450mm | 500mm |
| Stack | 597mm | 598mm | 610mm | 628mm |
| Head Tube Angle (high) | 66.4° | 66.4° | 66.4° | 66.4° |
| Trail | 117mm | 117mm | 117mm | 117mm |
| Chainstay Length | 435mm | 435mm | 435mm | 435mm |
| Reach (low) | 420mm | 450mm | 475mm | 500mm |
| Seat Tube Angle | 76° | 75.5° | 75.5° | 75.5° |
| BB Height (low) | 324mm | 326mm | 328mm | 328mm |
| Fork Length, Full | 530mm | 530mm | 530mm | 530mm |
| Head Tube Length | 92mm | 95mm | 110mm | 130mm |
| Top Tube Length, Horizontal | 569mm | 605mm | 633mm | 662mm |
| Wheelbase | 1147mm | 1179mm | 1210mm | 1243mm |
| BB Height (high) | 329mm | 331mm | 333mm | 333mm |
| Fork Rake/Offset | 44mm | 44mm | 44mm | 44mm |
| Bike Standover Height | 755mm | 760mm | 769mm | 774mm |
| BB Drop (low) | 46mm | 44mm | 42mm | 42mm |
| Head Tube Angle (low) | 65.9° | 65.9° | 65.9° | 65.9° |
